- Plastic Injection moulded body.
- Glass Filters – High Quality Imported
- Hermatically sealed, imported photodiode
- Light weight. Attractive design.

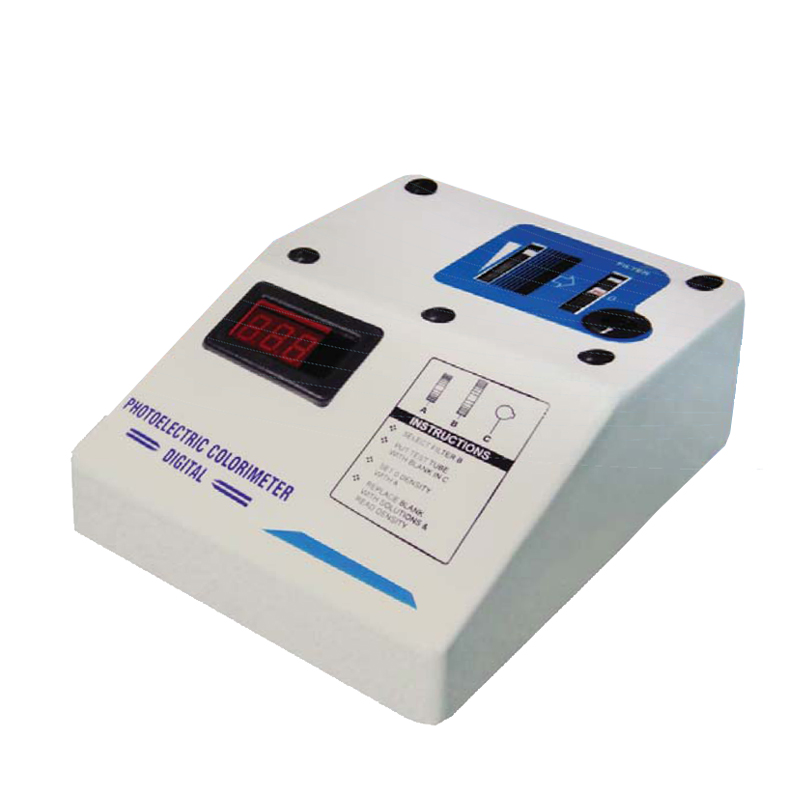

Our Model is the finest Photoelectric Colorimeter that combine convenience in operation with high precision & accuracy in analysis. The result in the form of optical density transmission are available on the display. Eight imported optical glass filters covering complete visible range of 400-700mm are mounted on a rotating disc. Its all imported filters makes it highly accurate as per international standards. Highly sensitive photo sensor and use of latest IC technology makes the instruments highly rugged, and economical in maintenance. A minimum sample volume of 1 ml is required to carery out the analysis. Provision has been made to switch on the lamp source only when required, there by increasing the life of the photodiode.
|Filters||8(All High Quality Optical Glass Filters)|
|Filters Range||400,480,510,520,540,580,620,700 (mm)|
|Display||2½ digit LED|
|Output OD||0 to 1.99|
|Accuracy||0.5% FS ± 1 Digit|
|Detector||Hermetically Sealed Imported Photodiode|
|Light Source||Imported white LED|
|Power||230V ± 10% AC, 50 Hz|
|Dimensions||L-33cm. x W-30cm. x H-16.5cm. (approx.)|
|Weight||1.5 Kg. Approx.|
|Accessories||(i) Test Tube-5
(ii) Test Tube Stand
(iii) Dust Cover-1
(iv) Spare Light Source-2
(v) Instruction Manual-1
