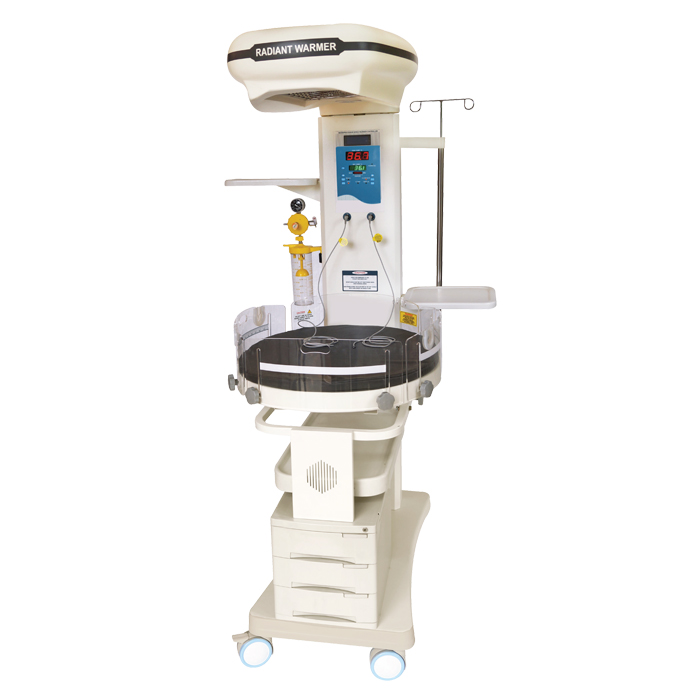

Neonatal Intensive Care Warmer

SKU: 250 A. Category: .

New innovation for the first time in Neonatal equipment history inbuilt LED Phototherapy attached made with hi quality unique FRR (Fire Retardant Resin) design for ultimate safety from fire and electric shocks. Radiant Warmers are full featured NICU equipment to meet Neonatal critical care requirements for new-born baby those in need of temperature maintenance



SEND ENQUIRY

Product Description

  • Inbuilt Slow Suction unit for neonate use, operated from the front panel
  • Baby bassinet of the unit equipped with baby weighing scale
  • Integrated CPAP System and Inbuild Pulse oximeter for SpO2, heart pulse rate.
  • Inbuilt blender for controlling the level of Oxygen concentration from 21% to 60% with medical air compressor
  • Oxygen analyzer to monitor O2 level within acrylic Oxygen Hood.
  • Provision to fix two Oxygen Cylinder 10 liters with flowmeter at the back of Unit.
  • Height adjustable system by foot switch.
  • Base of the units is equipped with three drawers



Latest high bright super flux LED top surface
phototherapy with digital timer



Technology WARMER Microprocessor based servo controlled electronic controller.

PHOTOTHERAPY Top surface Inbuilt LED phototherapy with digital timer for both total lamp usage and patient exposure (available on model KAMBRIDGE 510 only)

Mode Skin, Air and Manual Control.
Temperature Setting from 19°C to 39°C with heater power bar graph indication.
Display Two bright LED digital displays combination of Red and Green to continues monitor of baby temp and set temp, with easily switchable to °C to °F
LCD Screen Bright backlight LCD screen with full information of both Baby and Air mode along with alarm indication massages.
Safety Independent Hi temp cut off with Hi temp sensor at 39°C
Apgar Timer Can be used as a stop watch to measure heart rate and as a APGAR timer in labour ward
Alarms Audio and Visual indications for Baby Probe Failure, Air Probe Failure, Heater Failure,1°C high, 1°C low Hi temp cut off, System failure Power fail indication
Skin Probe Used latest technology hi sensitivity skin sensor to maintain uniform temperature
Air Sensor Hi sensitivity air sensor used in air mode to maintain uniform temperature all over the baby tray with high accuracy of ± 0.5°C
Manual Mode Heater power can be fixed manually with increments of 20% to 100% with Heater power bar graph indication
Heater German make ceramic heater with parabolic reflector to maintain uniform temp across the baby bed (Optional quartz filament heater)
Phototherapy High bright super flux LED Based Unit, LED lamps specially made for Phototherapy treatment, LED total life time fifty thousand usage Hours
Treatment Maximum irradiance at Skin level upto 30μw/cm2/nm at 420 at 490nm
Examination Lamp Latest power saving high bright LED observation lamp for procedures with adjustable facility to focus on required area during procedures
Main Unit Made with high quality FRR Fibre with high quality polyurethane painting for long lasting life with extra safety from electric shocks and corrosion
Baby Tray Made with high quality FRR [Fire Retardant Resin] grade fiber material for extra safety from electric shocks and corrosion, Newly designed oval shape baby tray with three sides collapsible clear acrylic panels. Head up & down tilting facility for baby tray, Clear acrylic base for under surface phototherapy with X –Ray cassette compartment
Source Unit Latest design swivel type source unit with German make ceramic heater fixed in a parabolic reflector to maintain uniform temperature all over the baby tray, easy rotatable either side to take bed side X-ray and during procedures
Monitor Tray Side monitor tray provision to keep Monitor or Pulse Oximeter
IV Stand Side IV pole to mount multiple Syringe or Infusion pumps with adjustable stainless steel IV inner
Bottom Tray To keep Resuscitation items or Bottom surface Phototherapy unit
Base Mounted on imported anti-skid casters with locking facility
Power AC 240V, 50 Hz, 1000W Maximum, Fuse rating 6 Amps
Dimensions Baby bed -800 (L) X 700 (W) mm oval shape
Mattress -800 (L) X 700(W) mm
Main unit – 1100(L) X 750 (W) X 1900 (H)
Weight (Approximate) – 85 kg
Humidity range – 10% to 75% RH
Transport / Storage Temperature range – 10°C to 60°
Optional: bottom surface phototherapy unit
